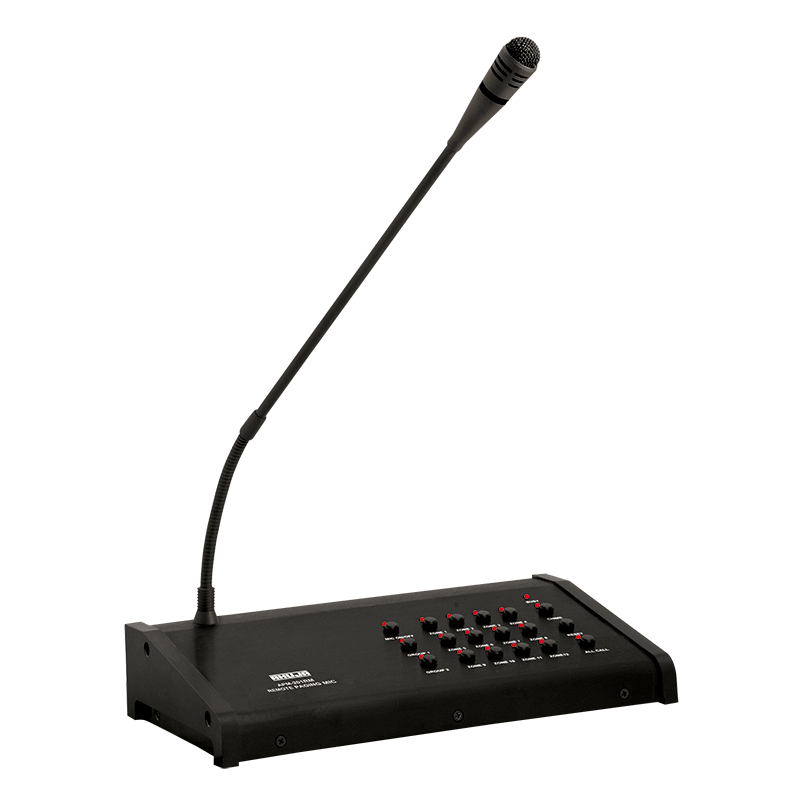

Ahuja APM-201RM Paging Systems

The Ahuja APM-201RM Paging Systems console is a high-performance zonal paging solution designed for professional public address installations. Built in an elegant aluminium housing, this paging console allows efficient communication across multiple zones with precise control and clear audio announcements.

Designed to work seamlessly with the Ahuja APM-202CU control unit, the system can create either a 6-zone or 12-zone paging setup depending on installation requirements.

Advanced Multi-Zone Paging Control

The Ahuja APM-201RM Paging Systems console features 12 zone selector switches along with an ALL CALL function, enabling announcements to specific areas or across all zones simultaneously.

LED indicators clearly display selected zones, helping operators manage paging efficiently in busy environments.

Professional Announcement Features

The console includes a 16-inch (40 cm) gooseneck microphone, ensuring comfortable operation and clear voice pickup. A dedicated microphone ON/OFF switch allows quick control during announcements.

Built-in chime functionality provides an alert tone before announcements, improving attention and clarity in public environments.

Flexible Group Selection & Reset Function

Group selection features allow multiple zones to be addressed together, while the RESET switch instantly clears all selections for faster operation.

Separate mic and chime level controls help maintain consistent sound output across different paging conditions.

Reliable System Integration

The unit connects securely using 8-pin lockable connectors, ensuring stable performance in professional installations. It operates on 24V DC power supplied from the APM-202CU, simplifying system setup.

Technical Specifications

• Output Level: 1V Balanced (Nominal)

• Switches:

  • 12 Zone Selectors

  • All Call

  • Chime

  • Group 1 & Group 2

  • Mic ON/OFF

  • Reset

• Controls: Mic Level, Chime Level

• Power Supply: DC 24V (from APM-202CU)

• Dimensions: W285 × H530 × D160 mm

• Weight: 1.6 kg

Ideal Applications

The Ahuja APM-201RM paging console is suitable for:

• Factories and industrial facilities

• Airports and railway stations

• Educational campuses

• Hospitals and large buildings

• Shopping malls and commercial complexes

The Ahuja APM-201RM Paging Systems console provides reliable zone-wise communication control, making it an essential component for professional PA installations.
